Its not uncommon for a beginner to think Spark as a replacement to Hadoop. The term “Hadoop” is interchangeably used to refer to either Hadoop ecosystem (or) Hadoop MapReduce (or) Hadoop HDFS. Apache Spark came in as a very strong contender to replace Hadoop MapReduce computation engine.

  1. Map Slots Hadoop Games

(In Hadoop 1, the JobTracker assigns mapper tasks to specific processing slots.) The mapper task itself processes its input split one record at a time — in the figure, this lone record is represented by the key/value pair. Pools basically specify the minimum no. Of map slots, reduce slots and a limit on running jobs. 2) Capacity Scheduler. This scheduler was basically designed by Yahoo. The capacity scheduler basically supports several features that are too supported by fair scheduler: Queues are allocated a fraction of total resource capacity. I will continue the topic with configuration of avaiable map and reduce slots in the cluster. Hadoop uses these slots to run map and reduce tasks and these slots are fixed with certain properties. Hadoop 1.0.3 is used on Ubuntu 12.04 machine.

This blog is to better understand what motivated Spark and how it evolved successfully as a strong contender to MapReduce.

We will section this blog in 3 parts:

  1. MapReduce computation Engine in a Nutshell

  2. Cons of MapReduce as motivation for Spark
    • Look at the drawbacks of MapReduce
    • How Spark addressed them
  3. How Spark works
    • Behind the scenes of a spark application running in cluster
  4. Appendix
    • Look at other attempts like Corona done to make up for the downsides of MapReduce Engine.

1. MapReduce (MR) computation in a nutshell

I’ll not go deep into the details, but, lets see birds eye view of how Hadoop MapReduce works. Below figure shows a typical Hadoop Cluster running two Map-Reduce applications. Each of these application’s Map(M) and Reduce(R) jobs are marked with black and white colours respectively.

  • NameNode and DataNode:
    • NameNode + DataNodes essentially make up HDFS.
    • NameNode only stores the metadata of HDFS i.e., it stores the list of all files in the file system (not its data), and keeps a track of them across the cluster.
    • DataNodes store the actual data of files.
    • NameNode JVM heart beats with DataNode JVM’s every 3secs.
  • JobTracker (JT) and TaskTracker (TT):
    • JobTracker JVM is the brain of the MapReduce Engine and runs on NameNode.
    • JobTracker creates and allocates jobs to TaskTracker which runs on DataNodes.
    • TaskTrackers runs the task and reports task status to JobTracker.

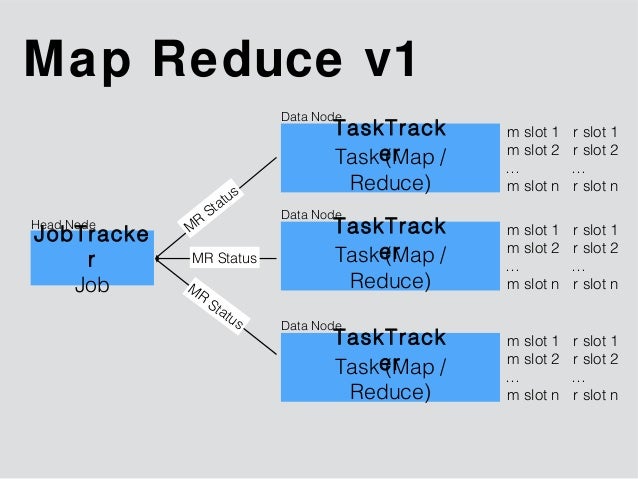

    • Inside TaskTracker JVM, we have slots where we run our jobs. These slots are hardcoded to be either Map slot or Reduce slot. One cannot run a reduce job on a map slot and vice-versa.
